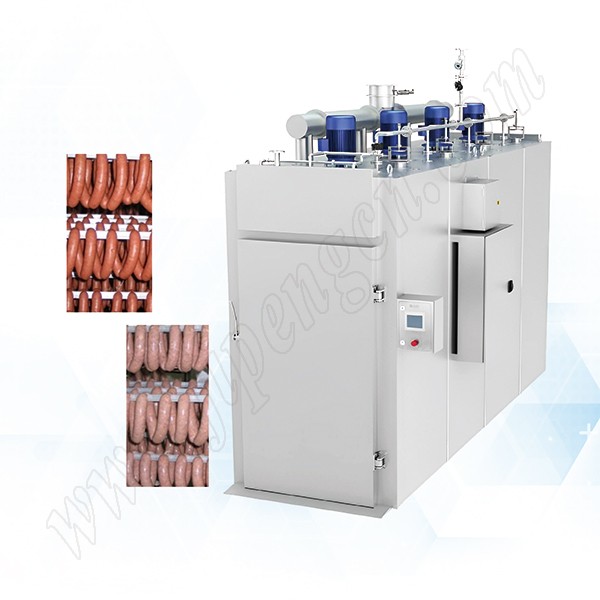

Steam house is specialized for processing meat products, it is characteristic of well sealing, energy saving, auto- control of temperature, and wide application. PL C & HMI control system. Inside and outside walls are made of quality stainless steel. Polyurethane foams provide efficient insulation. House temperature, core temperature and time can be set up. Key parts are world-top quality. Cirulating fan is optional.
Technical Parameters
Model |
One trolley |
Two trolley |
Three trolley |
Four trolley |
Capacity (kg/time) |
250 |
500 |
750 |
1000 |
Power (kW) |
2.2 |
4.4 |
6.6 |
8.8 |
Pressure Steam(MPa) |
<0.1 |
<0.1 |
<0.1 |
<0.1 |
Steam consumption (kg/h) |
80 |
120 |
160 |
|
External Dim. (mm) |
1600*1456*3000 |
2700*1456*3300 |
3800*1456*3330 |
4900*1456*3330 |
