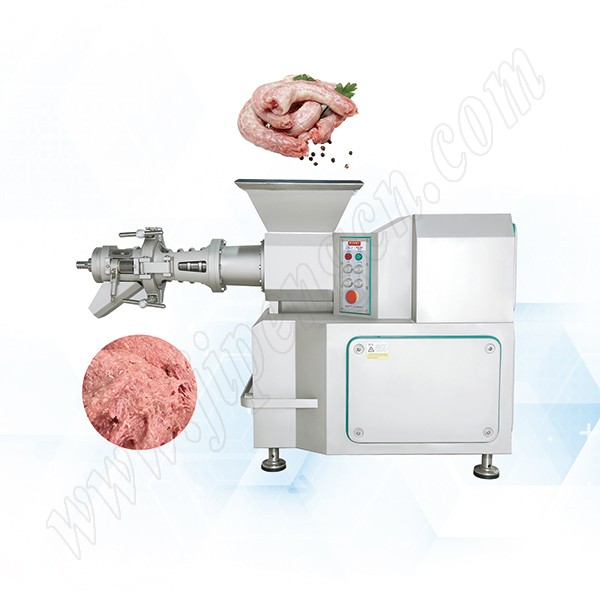

Bone Separator is made of high-quality material, accurate machining and imported key parts, which ensure a simple operation, easy maintenance and high performance.
Working principle: By using the technology of continuous shearing and mass separation of micro-particles under pressure, the mass separated by rapid shearing in the state of fine particles,the structure is intact, and the temperature is low.
Range of application: chicken, chicken bone, duck, fish, etc.
Effect of separation: The separated muddy flesh is well-emulsified without bone fragments, which can be proportionally added into various products.
Advantage:high productivity, high meat rate, boneless residue, less wearing parts, low maintenance cost, and be matched into a production line with auto-feeding machine, auto-portioning machine.
Technical Parameters
Item |
Data |
Voltage |
380V、50Hz |
Overall power |
27.5KW |
Capacity |
chicken rack≥ 2000Kg/h, chicken neck≥ 3000Kg/h |
Production rate |
62%-80%(chicken rack), 68%-80%(chicken neck, 90%(whole chicken) |
Bone residue in the meat |
<0.05% |
Overall size(L*W*H) |
3300*2000*1300mm |
Weight |
1000kgs |
