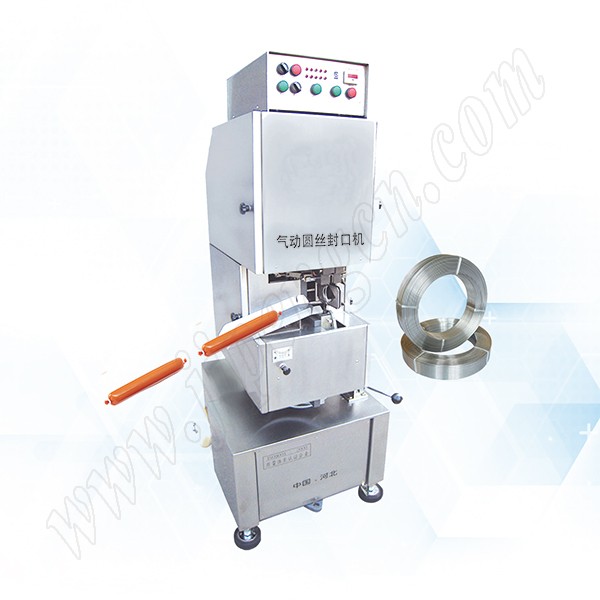

The pneumatic Aluminum wire double sealing machine takes compressed air as the power source and PLC as the control .It is used for sealing ham sausage and other soft packaging products.the structure is simple and firm, the operation is easy and flexible.
it has the function of cutting off and counting with the characteristics of stable and reliable performance, long service life and strong water resistance. It can be work with all brand of filling machines which are domestic and abroad.
Technical Parameters
|
Model |
YS-3 |
|
Speed (times/min) |
45 |
|
Voltage |
220V |
|
Air pressure |
0.6—0.7 MPa |
|
Suit casing size |
Flat Width:30-90mm Cal: 19mm-57mm |
|
Aluminium size(mm) |
φ2.1、φ2.45、φ2.7、φ2.9..... |
|
The length of stretch |
36-100mm (optional) |
|
The height of sealing |
850—950 mm |
|
External Dim. (mm) |
1030×700×1650mm |
|
Weight (kg) |
approx.350 |
