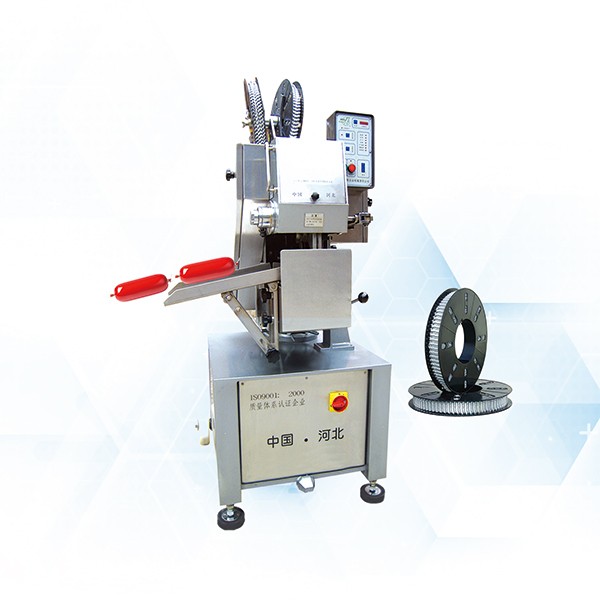

Pneumatic double Clipping Machine is mainly used for sealing ham and other soft packing products. It is driven by Pneumatic, the structure is simple and firm, the operation is easy and flexible, it has the function of cutting off and counting. Adopt OMRON PLC programmable control system, touch screen operation, with the characteristics of stable and reliable performance, long service life and strong water resistance. It can be work with all brand of filling machines which are domestic and abroad.
Technical Parameters
|
Model |
CDF |
|
Speed (times/min) |
40 |
|
Voltage |
380V 50HZ |
|
Power (kW) |
3 |
|
Suit casing size |
Flat Width:40-135mm Cal: 25mm-85mm |
|
Air pressure |
0.55—0.65 MPa |
|
Suit clips |
the range of 15 and 18 |
|
Air consumption |
9.6L /cycle |
|
The height of sealing |
920—1080 mm |
|
External Dim |
870×980×1800mm |
|
Weight |
approx.470 kg |
