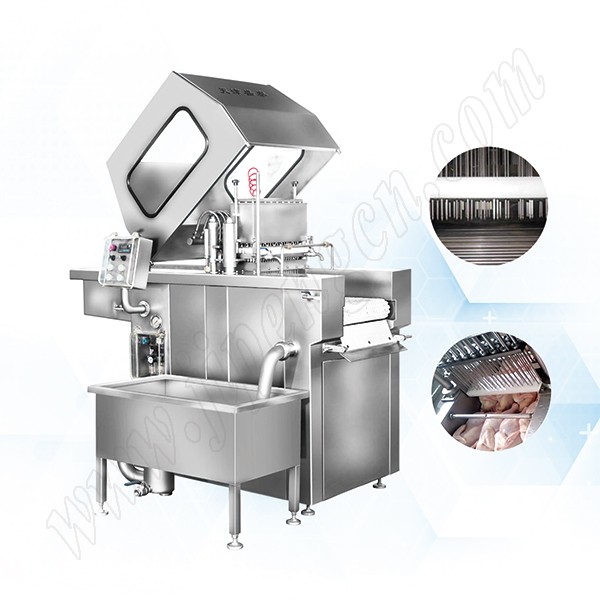

Brine injector is to inject brine and marinating additives into the meat uniformly, to improve taste and increase product rate. Stepping speed, stepping distance, working height and injection pressure can be adjusted as desired. Measurable, uniform and continuous brine injections realize the optimum marinating. Brine injector ensure an uniform injection result. It is designed for the injection of meat and poultry with or without bones.
This injector is made of quality stainless steel. The exact design,reasonable structure, easy operating, the hygienic disassembled conveyor belt, convenient cleaning, all these reasons make it an essential equipment for meat processing enterprises.The Injector transmission of stepping needle box adopts frequency convertor modulation speed. The injection pump uses a frequency converter to adjust the pump pressure.
Technical parameters
|
Model |
YZ-82 |
YZ-82I |
YZ-128I |
YZ-243 |
|
Capacity(kg/h) |
600-1000 |
600-1200 |
1500-2000 |
2000-2500 |
|
Power(kW) |
4.75 |
10.5 |
13.2 |
9 |
|
Needles(PC) |
82 |
82 |
128 |
243 |
|
Injection Pressure(Mpa) |
0.2-0.7 |
0.3-0.8 |
0.3-0.9 |
0.3-0.6 |
|
Injection Rate(%) |
20-100 |
20-100 |
20-100 |
30-50 |
|
Injection Frequency(times/Min) |
Frequency |
Frequency |
Frequency |
Frequency |
|
Stepping Speed(m/min) |
Frequency |
Frequency |
Frequency |
Frequency |
|
Stepping Distance(mm/times) |
50 |
50/100 |
52/114 |
202/101 |
|
Working Height(mm) |
50-190 |
50-190 |
50-190 |
50-190 |
|
External Dim.(mm) |
1700*830*1760 |
2040*920*1960 |
2040*980*2000 |
1760*1350*1750 |
|
Installation Dim.(mm) |
3000*2000*2200 |
4000*2500*2500 |
4000*2500*2500 |
3000*2500*2500 |
|
Weight(kg) |
≈450 |
≈600 |
≈800 |
≈500 |
