Control system with 10 sets of memory

Original BUSCH vacuum pump

M-type 6mm bimodal sealing line

Description

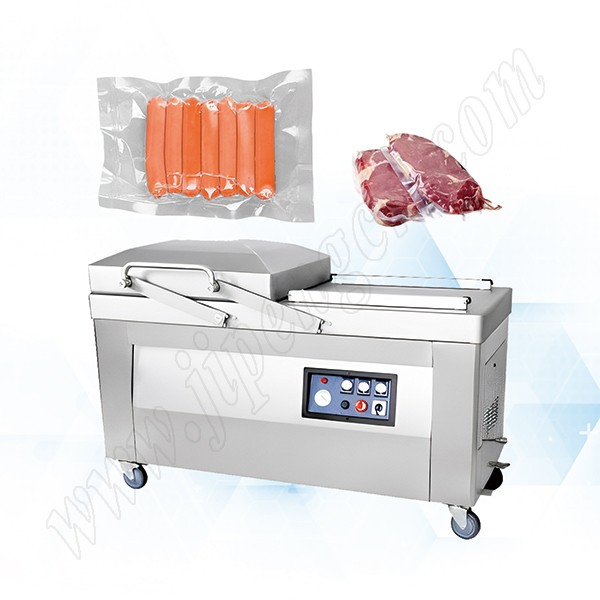

Vacuum Packing Machine

(1)stainless steel manufacturing of the whole machine. The upper and lower vacuum grooves are molded with a single thick stainless steel plate, which is treated by sandblasting and electrolysis, which has a beautiful and strong appearance and excellent moisture resistance.
(2) A new microcomputer control system with 10 sets of memory. It can be changed according to the demand of the product.
(3) Original BUSCH vacuum pump.
(4) Pneumatic automatic cover opening device saves time and effort.
(5) M-type 6mm bimodal sealing line, equipped with special pressure sealing device, thick material, wrinkle, product with oil and overlapping packaging can be sealed and tight without air leakage.
(6) Large diameter vacuum valve with fast pumping speed and high vacuum.

(7) The upper part of the equipment table can be disassembled and assembled, it is convenient to clean and there is no sanitary dead corner.

Vacuum Packing Machine

Technical parameter:

Item	Data
Voltage	380V 50HZ
Power	4kw
Pump	160M3/H
Length of sealing line	850mm * 4pcs
Width of sealing line	6-20mm
Sealing line spacing	630mm
Packing groove size	930mm735mm190mm
Size	2140mm950mm1100mm
weight	680Kg
