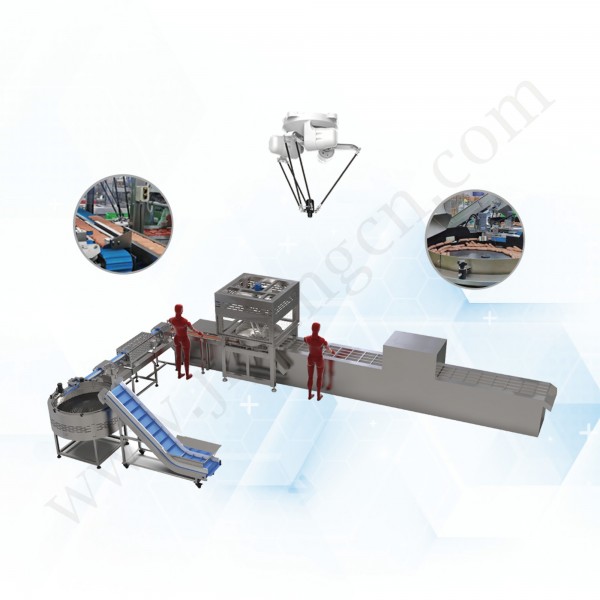

Automatic feeding system

Centrifuge and rotate the material to ensure no damage to the product.

Unique structural design, the turntable is stable and adjustable.

Description

	Centrifuge and rotate the material to ensure no damage to the product.
Unique structural design, the turntable is stable and adjustable.
The internal turntable can adjust the angle and position according to the discharge port.
Modular design of discharge line, with adjustable direction of discharge port.
The protective cover and quick disassembly structure of the slag tray facilitate the cleaning of debris.
Efficient and stable, saving 1-2 more manual labor, with a hygienic structure that makes cleaning more convenient, and a  simple and user-friendly interface.

Model	Single Channel	Dual Channel
Equipment Material	304 stainless steel	304 stainless steel
Payload	≤8 kilometers(including fxtures)	≤16 kilometers(including fxtures)
Working Power Supply	Single-phase 220V.	Single-phase 220V.
Host Power	2.3KW	4.6KW
Equipment Weight	The main machine is about 240 KG	The main machine is about 480 KG
Work Arm	Carbon fber material	Carbon fber material
Working Radius	550mm	2*550mm
Air SourceRequirements	Air pressure: 0.7-0.8 MPa. Air consumption: 0.6 cubic meters per minute or high-pressure vorex air pump	Air pressure: 0.7-0.8 MPa. Air consumption: 0.6 cubic meters per minute or high-pressure vorex air pump
Action Frequency	22 beats per minute	40 beats per minute
Human Machine Interace Electrical Components	Seven-inch teaching pendant and Yachuan packing software; Omron or Schneider.	Seven-inch teaching pendant and Yachuan packing software; Omron or Schneider.
Placement Rules	Horizontal or verical	Horizontal or verical
Repetitive Positioning Accuracy	±0.1mm	±0.1mm
Scope of Application	Various products such as food, condiments, pharmaceuticals, electronic products, and hardware	Various products such as food, condiments, pharmaceuticals, electronic products, and hardware
Usage Eenvironment	Room temperature is 0 - 45℃. Usually below 75% RH, no condensation,no corrosive gas, no dust and other harsh environments	Room temperature is 0 - 45℃. Usually below 75% RH, no condensation,no corrosive gas, no dust and other harsh environments
