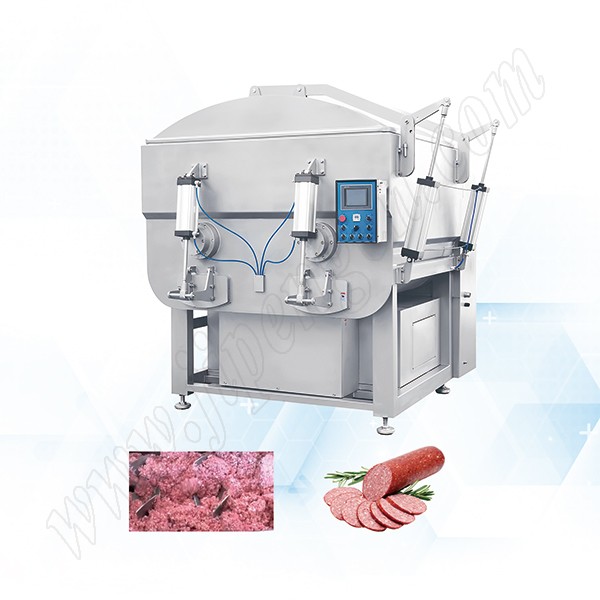

This vacuum mixer produces evenly mixed and bubble-free meats with perfect elasticity, which makes it becomes the top choice in market.
* The mixer is made of quality stainless steel, solid, durable and hygienic.
* Materials are mixed with high performance vacuum system; and vacuum can be set up.
* The parallel twin shafts equipped with palm-vane and pushing-ring make a uniform mixing result.
* electric-mechanical control; PLC&HMI control. Total time, interval time and mixing types can be set up.
Technical Parameters
|
Model |
ZJB-750II |
ZJB-1200II |
ZJB-2000II |
ZJB-2500II |
|
Capacity (kg) |
500 |
900 |
1500 |
2000 |
|
Power (Kw) |
9 |
11 |
18 |
25 |
|
Volume (L) |
750 |
1200 |
2000 |
2500 |
|
Shaft Speed (rpm) |
20-40 Frequency conversion |
20-40 Frequency conversion |
20-40 Frequency conversion |
20-40 Frequency conversion |
|
Vacuum (KPa) |
-80 ~ -85 |
-80 ~ -85 |
-80 ~ -85 |
-80 ~ -85 |
|
Compressed Air (MPa) |
0.6-0.7 |
0.6-0.7 |
0.6~ 0.7 |
0.6 ~ 0.7 |
|
External Dim. (mm) |
1950*1430*1870 |
2240*1620*1910 |
2270*1930*2150 |
2340*2150*2230 |
|
Installation Dim. (mm) |
3000*3000*3200 |
3000*3600*3200 |
3600*3800*3900 |
4200*4500*4200 |
|
Weight (kg) |
approx. 1200 |
approx. 1500 |
≈3000 |
approx. 3300 |
