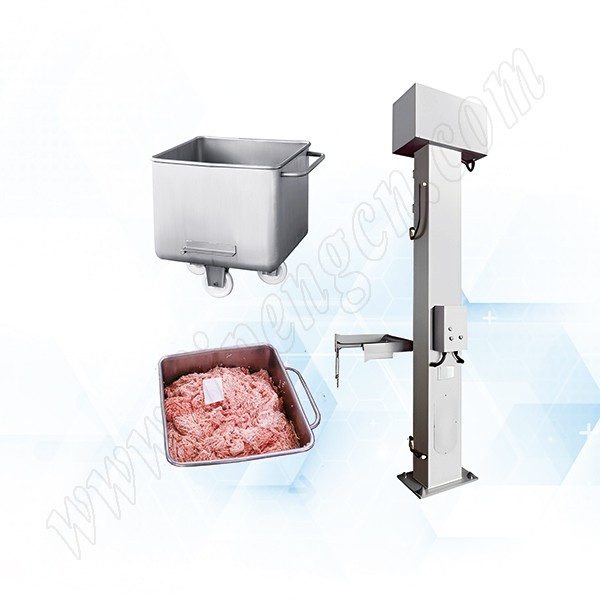

TSJ-200 meat lifter is is made of all stainless steel SUS304, it is a hoisting device special for 200L standard meat car.
Function: lift the material to a specified height, then pours the material into the bin of processing equipment and then the feeding work is finished.
Reduce labor intensity and increase productivity,Run smoothly and safely, easy to clean and operate,the hoisting height of material is available for adjustment according to actual situations.
Technical parameters
|
Model |
TSJ-200 |
|
Transmission Mode |
Screw type |
|
Voltage（V） |
380V/50HZ |
|
Power (KW) |
1.5 |
|
Lift Height(M) |
1.85 M |
|
Lifting weight(KG) |
Appr. 200 |
|
Lifting Speed(M/min) |
5.12 |
|
External Dim. (mm) |
1290*640*2450 mm |
|
Weight (kg) |
≈300 |
